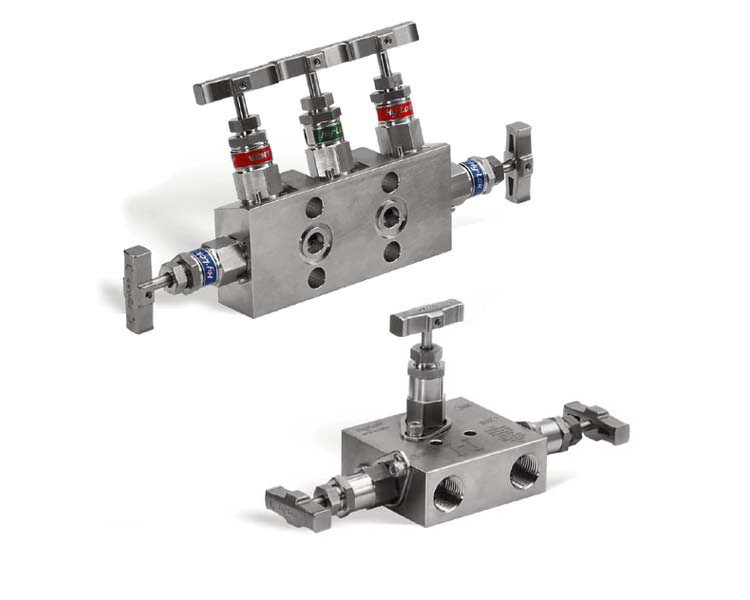

M Series – Instrument Manifolds (Manifolds Valves)

Applications

Pressure & Differential Pressure, Instrumentation

Catalog

Features

• 2-Valves, 3-Valves, 5-Valves
• Manifolds designs
• Stainless Steel, Alloy 400(Monel), A105
• Available direct or remote mounting
• Isolation, calibration and vent
• Available PTFE or Grafoil seats

Specifications

• Maximum Operating Pressure:
  6000 psig(420 barg) @ 100℉(38℃)
• Operating Temperature Range:
  • PTFE Packing : -65℉(-54℃) to 450℉(233℃)
  • Grafoil Packing : -65℉(-54℃) to 1200℉(649℃)
